KS 2l line layout laser

Name: KS 2l line layout laser
Brand: SitePro
SKU: 28-KS2L
Price: 229.00 CND
Availability: InStock

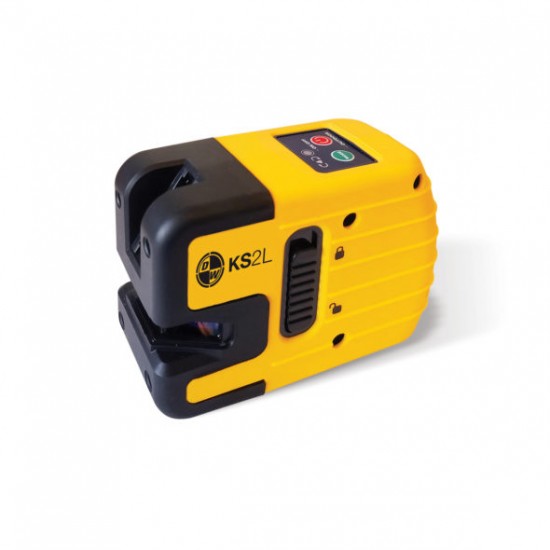

KS 2l line layout laser

KEEP-IT SIMPLE SERIES

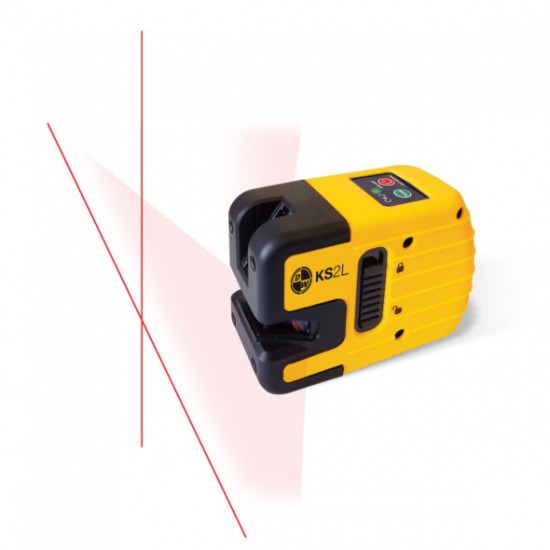

The KS 2L projects a vertical and horizontal laser line, ideal for one person leveling, plumb, and layout applications. Features three modes: projects two lines independently or together for a wide range of level and/or plumb applications

FEATURES:

±1/8-in at 30-ft (3mm at 10m) leveling accuracy
Up to 165-ft (50m) working range with optional detector
Small, compact design
Detector mode allows laser to be used with optional line laser detector

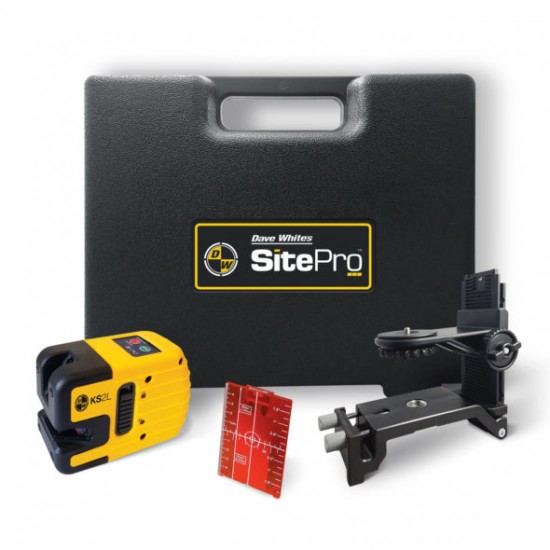

Adapter and support base with strong magnets, 1/4-20 and 5/8-11 thread, slots for screws or nails, raceways for optional straps
Easy access battery compartment

IDEAL FOR

Level, horizontal & vertical layout, square, & plumb
Layout, alignment, and squaring of interior walls
Drop ceiling or acoustical ceiling installation
Installation of recessed lighting, duct work, plumbing
Cabinet & trim installation, finish carpentry

TECHNICAL SPECIFICATIONS

Accuracy	± 1/8-in at 100 ft (±3 mm at 30 m)
Leveling
Leveling Type	Self-Leveling
Compensation	Magnetic Dampening with Lock Switch
Leveling Range	± 3º
Beam	Red
Laser Emission Angle	180 degrees
Laser Diode	635 nm <1mW
Laser Hazard Class	Hazard Class 2
Operating Range
without Detector	100 ft (30 m) dependent on illumination of work area
with Detector (Optional)	325 ft (100 m)
Environment	+14º F to 113º F (-10º C to 45º C)
Power Source	Four (4) AA Alkaline Batteries
Run Time (typical)	18+ hrs of continuous use
Dimension	4.13 x 1.65 x 2.95-in (105 x 42 x 75 mm)
Weight (no batteries)	0.6 lb ( 0.27 g)
