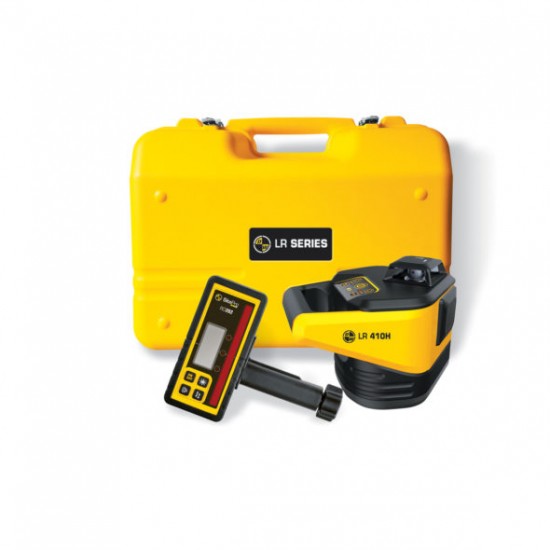

LR 410H Rotary Laser

LR 410H Rotary Laser

Description
Technical Data

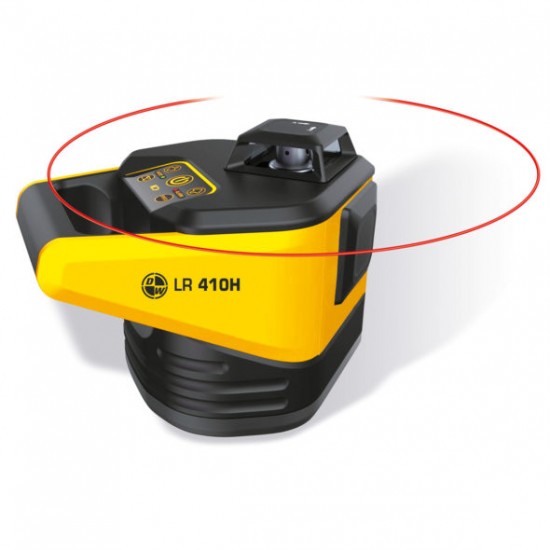

The LR 410H is a simple, single horizontal rotary laser with electronic self-leveling technology. This laser system is ideal for exterior elevation, level, and simple grade work.

FEATURES:

±1/16-in at 100 feet (±1.8mm at 30m) leveling accuracy
2,950 ft (900m) diameter working range with detector
Compact, ergonomic design with single button operation
Extremely high rotation speed of up to 2,000 rpm- adjustable
Electronic self-leveling
Single axis ±7.0% slope

Leveling	Horizontal
Horizontal Accuracy	±1/16-in at 100-ft (±1.8mm at 30m)
Vertical Accuracy	n/a
Angle Accuracy	20”
Leveling Type	Electronic Self-Leveling (±4º)
Slope/Grade	Single Axis -4º to +4º
Working Range (dia.)
Without Detector	Up to 65-ft (20m)
With Detector	Up to 2950-ft (900m)
Beam Rating	635 nm, Class 2
Rotation Speed	400, 800, 2000 RPM
Scanning	10°, 45°, 90°
Power Supply	Four (4) C Cell Alkaline or Li-on Rechargeable Batteries
Operating Time
w/Li-Ionen Battery	23 hrs
w/Alkaline Batteries	35 hrs
Environment	IP55, Water/Dust Resistant
Operating Temp.	14° to 112° F (-10° to + 45° C)
Storage Temp.	-4° to 158° F (-20° to 70° C)
Dimension	8.5 x 6.0 x 6.2-in (215 x 150 x 156mm)
Weight (instrument)	4.2 lb (1.9 kg)

Availability: In Stock
Brand: SitePro
Product Code:: 27-LR 410H
SKU: 27-LR 410H

Products Sold: 0

Product Views: 1260

0 reviews - Write a review

$895.00

Add to Cart

Ask Question
