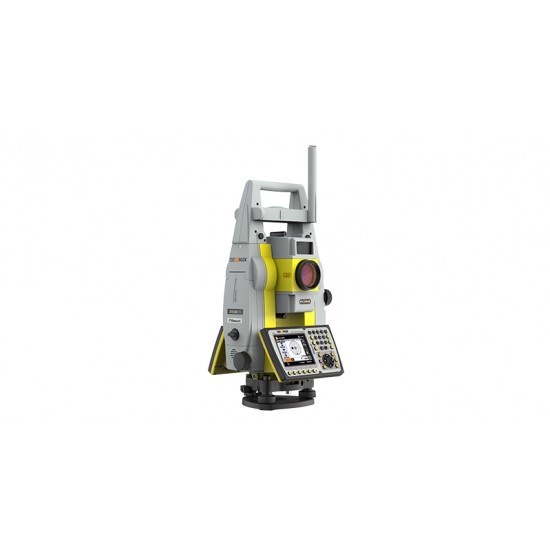

Zoom70 Series Total Station

Description
Technical data

With the GeoMax Zoom70 true one-man total station, you can significantly increase your efficiency. The support of the X-PAD-based GNSS prism search, seamlessly merged with the proven powerful accXXess EDM with its Track and AiM technology, the Zoom70 provides high flexibility and performance needed for your daily job.

X-Motion hybrid drives

The new Zoom70 incorporates X-motion hybrid drives, promoting automation performance compared to conventional drives. It will follow your target at 90 km/h at 100 m distance.

Full connectivity

The GeoMax Zoom70 meets all your connectivity needs. Use its built-in Bluetooth® for medium range data transfer or its dedicated long-range Bluetooth® handle for highest performance over long distances. Either way, it is ideal for one-man robotic surveys. Combine your preferred software and field controller to perform remote control tasks with increased productivity. The Windows® CE operating system installed on Zoom70 allows you to run a variety of powerful field software packages onboard. This provides you the freedom to choose the software that best suits your needs.

One-man total station

GeoTRAil: Equipped with the long-range Bluetooth® handle, the Zoom70 transforms into a true one-man total station. It supports the advanced prism search, based on the GNSS position of the controller, mounted on the pole. Due to its seamless integration into X-PAD ULTIMATE field software, GeoTRAil combines simplicity and high performance. As there is no need for special, expensive and power-consuming active prisms, this total station is ideal on any worksite. Zoom70 keeps your pole lightweight and convenient to carry all survey-day long! TRack: Another element of the STReAM360 is the tracking functionality; the Zoom70 is continuously tracking your target. Once locked onto, the instrument remains accurately aimed even on fast moving targets. AiM: The Zoom70 aims accurately at any prism, without the need to look through the telescope. Highly reliable measurements are performed automatically and are consistently repeatable.

Angle measurements

Accuracy: 1” (0.3 mgon), 2” (0.6 mgon), 5” (1.5 mgon)
Display resolution: 0.1” (0.1 mgon)
Method: Absolute, continuous, diametrical
Compensation: Quadruple axis

NavLight ™ - Alignment aid

Range: 5 m to 150 m
Accuracy: 5 cm at 100 m

Physical specifications

Weight: 5.0 - 5.3 kg (w/o battery and tribrach)
Operating- / storage temperature: -20° C to 50° C / -40° C to 70° C
Protection class: IP55 dust and waterproof rating
Humidity: 95%, non-condensing

Telescope

Magnification: 30x
Distance measurements - prism
Range / accuracy / time Standard mode: 3500 m/1 mm + 1.5 ppm/typ. 0.8 sec* Long mode: >10,000 m / 5 mm+2 ppm / typ. 2.5 sec

Motorisation

Technology: Hybrid Drives

GeoTRAil - GNSS based prism search

Speed: 50 g/sec

TRack - Automatic prism logging

Range: 800 m at round prism
Max speed: 90 km/h at 100 m

AiM - Automatic prism fine aiming

Range: 1,000 m at round prism
Hz/V accuracy: 1”
Technique: Image processing

Distance measurements - reflectorless

Range: accXess5 / accXXess10 500 m / 1000 m
Accuracy: 2 mm + 2 ppm**
Time: Typ. 3 sec
Precise capture: 8x20 mm at 50 m

Interface

Keyboard: Full alphanumeric; 35 keys; illuminated (2nd optional)
Display: Full VGA 640 x 480 colour and touch with LED backlight
Data recording: 1 GB internal memory; removable SD card and USB stick
Ports: Serial; USB; internal Bluetooth®; long-range Bluetooth® handle and external power
Operating system: Microsoft® Windows® CE 6.0

Power supply
